Applications :

• Single Core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts.

Standards :

• BS 6853 -1a
• DIN 5510-1 1-4
• NFF 16-101 F0

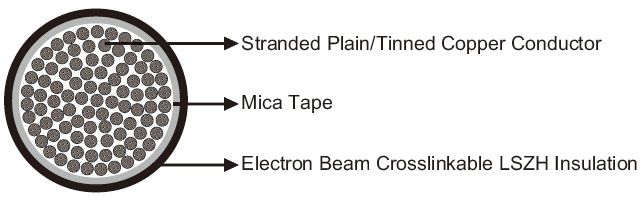

Construction :

• Conductors : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
• Flame Barrier : Mica tape.
• Insulation : Electron beam crosslinkable thin wall LSZH compound.

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm²	0.5	0.75	1.0	1.5	2.5
  Maximum DC Conductor Resistance	Ω/km	40.1	26.7	20.0	13.7	8.21
  Voltage Rating	KV	0.45/0.75

Mechanical and Thermal Properties :

• Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm).
• Temperature Range : -40°C to +120°C.

Dimensions and Weight :



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	Nominal Diameter of Strands No/mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
FRA-TW-0.5SU-FR-1C0.5S	1×0.5	16/0.20	0.30	2.0	8
FRA-TW-0.5SU-FR-1C0.75S	1×0.75	24/0.20	0.30	2.25	11
FRA-TW-0.5SU-FR-1C1S	1×1.0	32/0.2	0.35	2.50	14
FRA-TW-0.5SU-FR-1C1.5S	1×1.5*	30/0.25	0.35	2.8	19
FRA-TW-0.5SU-FR-1C2.5S	1×2.5*	50/0.25	0.35	3.2	29







Impact Resistant	Highly Flexible	UV Resistant	Oil Resistant	Weather Resistant	Low Toxicity





Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
